NH₃/CO₂ cascade refrigeration and meat processing cold rooms
Citect SCADA screens for NH₃ and CO₂ compressors, cold rooms and blast freezers in a meat processing plant.
- Industry
- Food and cold chain
- Year
- 2023
- Highlight
- 3 CO₂ and 3 NH₃ compressors
The system
The machine room has three CO₂ and three NH₃ compressors, a -40 °C CO₂ separator, a CO₂ receiver, a surge drum, heat exchangers, an ice machine and a heat pack circuit. NH₃ and CO₂ gas sensors in the machine room are shown on screen in ppm.

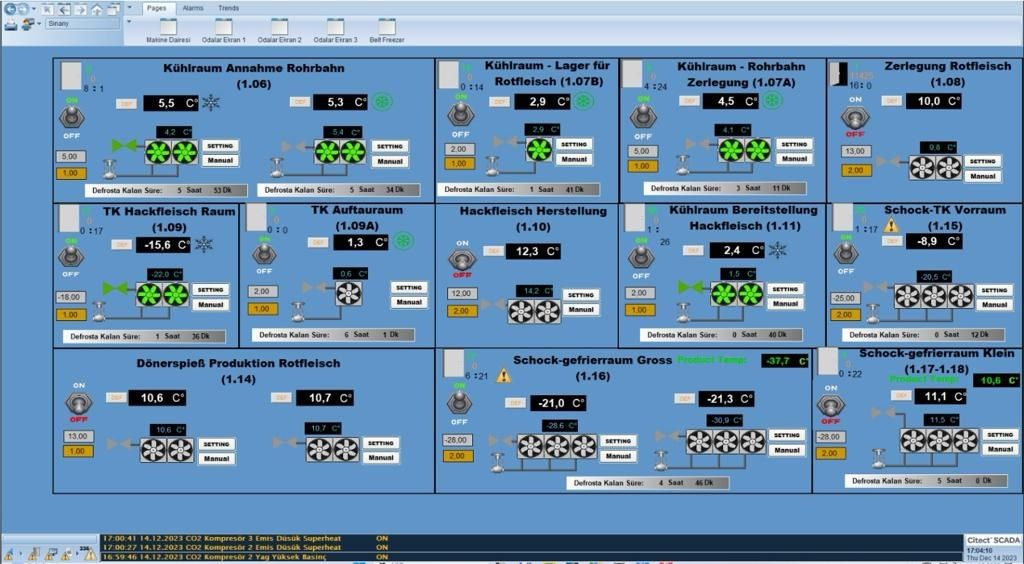

The cold room screens cover areas such as raw meat intake, minced meat, doner production and blast freezing rooms with their temperatures, set points and defrost data. The room screens were prepared in German.
What we delivered
- Machine room and room screens on Citect SCADA
- Frequency, current and capacity per compressor, with manual and remote operating modes
- Pressure, temperature and level monitoring for separators and receivers
- Alarm list and trend pages
Result
A cascade system running on two refrigerants, and the cold rooms it serves, are brought together in one SCADA. The operating mode, frequency and load of each compressor can be read at a glance.
